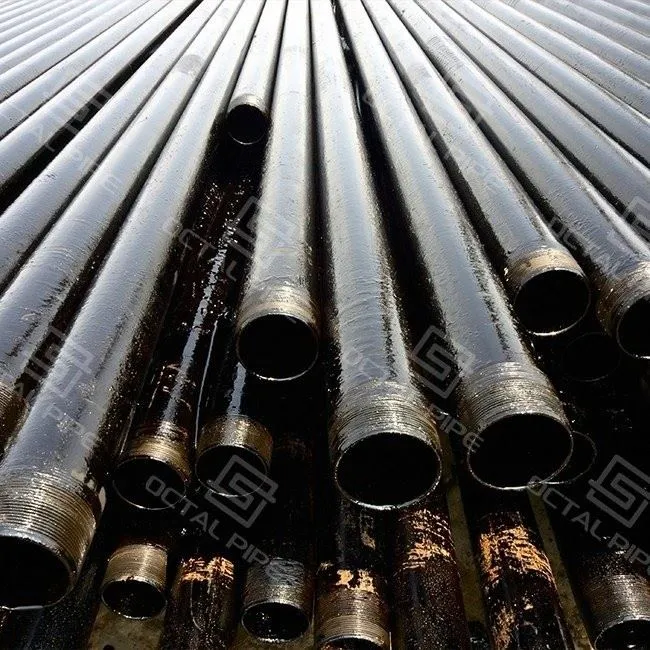

API 5DP Drill Pipe
API 5DP Drill Pipe suppliers

API 5DP Drill Pipe

Name: Shiinaha Customized API 5DP Wershadaha Tubta Qodista, Alaab-qeybiyeyaasha iyo Warshada - Lagu Sameeyay Shiinaha - OCTAL Pipe
Brand: OCTAL
SKU: 294326957

Heerka: API 5DP u hoggaansan (qalabka kala goysyada API 7-2)
Xadka OD: 2 3/8″ – 6 5/8″
Fasalada: E75, X95, G105, S135
Dhererka: R1 (18–22 fuudh), R2 (27–30 fuudh), R3 (38–45 ft)
Noocyada xanaaqsan: IU, EU, IEU
Xiriirinta: NC, IF, REG, FH, ikhtiyaarka premium
Sifooyinka: Q&T birta daawaha ah, is jiid jiid{0}}laysyada qalabka welded, hardbanding optional
Codsiyada: Ceelasha saliidda & gaaska, qodista geothermal, ceelasha qoto dheer ee HPHT, ceelasha xeebaha

U dir sooji

Download

Hordhaca alaabta

Dulmarka alaabta

API 5DP Drill Pipe waa warshadaha -tubka birta caadiga ah ee loo isticmaalo hawlaha qodida ceelasha saliidda, gaaska, iyo geothermal Waxay u shaqeysaa sida marinka dareeraha qodista iyo sida isku xirka farsamada gudbinta wareegtada wareegta ah iyo culeyska axial-ka ah ee loo yaqaan 'dillbit'.
Si ka duwan daasadaha iyo tubbada, tuubooyinka daloolista ayaa ah tuubooyin dib loo isticmaali karo oo loogu talagalay samaynta soo noqnoqda{0}}kor u kaca/nasasho{1}} wareegyada soo noqnoqda, diiqad aad u daran, iyo daal ka hooseeya culeyska wareegtada. API 5DP waxay qeexdaa cabbirrada, darajooyinka, qalabka farsamada, shuruudaha kormeerka, iyo calaamadaynta tuubooyinka qodista, hubinta is-beddelka iyo isku halaynta dhammaan nidaamyada qodista ee adduunka oo dhan.
Octal Pipe waxay bixisaa tiro dhamaystiran oo ah E75, X95, G105, iyo S135 tuubooyinka daloolista oo leh is jiid jiid{4}}qalabka alxanka leh, xidhidhyada qaaliga ah, iyo hardbanding optional si loo kordhiyo nolosha adeega xaaladaha adag ee qodista.

Heerarka & Baaxadda Gaarka

Heerka:API Specification 5DP (daabacaaddii ugu dambeysay)
Darajooyinka: E75, X95, G105, S135
Noocyada xanaaqsan:IU, EU, IEU
Xiriirinta Wadajirka ah ee Qalabka:API 7-2 (NC, IF, REG, FH) ama xidhiidhada qaaliga ah
Dhererka dhererka:R1 (18–22 fuudh), R2 (27–30 fuudh), R3 (38–45 fuudh)

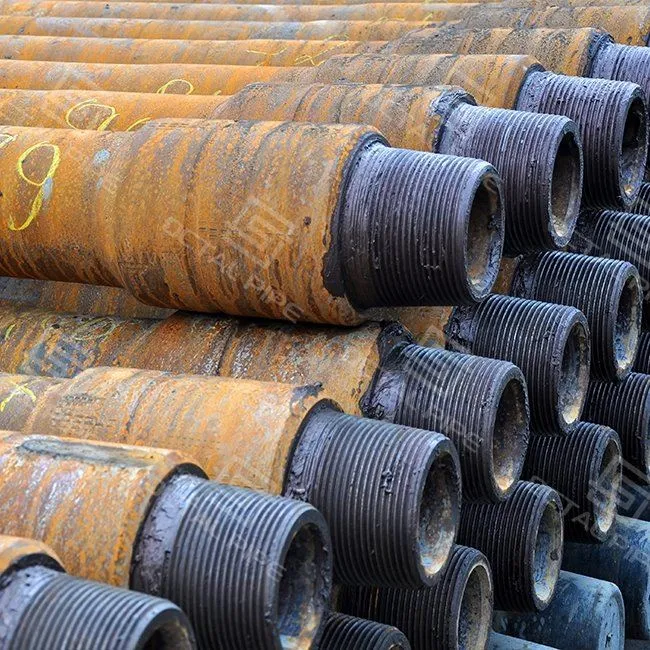

API 5DP drilling pipe with tool joints High-strength S135 drill pipe Hardbanding applied to drill pipe tool joint

Habka wax-soo-saarka (Faahfaahin)

Pipe Octal waxay raacdaa dariiqa wax soo saarka oo si buuxda loo maamulay si ay u soo saarto API 5DP tuubooyinka qodista:
1.Xulashada alaabta ceeriin

Tuubooyinka birta daawaha ah ee aan fiicneyn (sida caadiga ah 35CrMo, 40Cr, 4137H, 4145H) oo leh micro{4}} alloying
Xakamaynta isku dhafka kiimikada adag waxay hubisaa xasilloonida farsamada.

2.Tube Kacsi

Dhamaadka tuubooyinka waxaa lagu sameeyaa foormo kulul oo lagu sameeyo IU, EU, ama IEU dhamaadka xanaaqa.
Tani waxay kordhinaysaa dhumucda gidaarka iyo isgoysyada{0}aagga qaybaha, taas oo u oggolaanaysa alxanka wadajirka ah ee qalabka.

3.Daawaynta kulaylka

Dejinta & xanaaqa (Q&T) oo dhan dhererka tuubada buuxda si loo gaaro xoogga dhalidda loo baahan yahay (ilaa 135,000 psi ee S135).
Adkeydka la xakameeyey wuxuu xaqiijiyaa dheelitirnaanta xoogga, adkaanta, iyo caabbinta daalka.

4.Friction Welding

Kala-goysyada qalabku waa is-jiidh - welded si ay u xanaaqaan dhamman oo leh gelinta kuleyl si sax ah loo xakameeyey.
Waxay soo saartaa curaarta birta ah ee aan xidhnayn oo leh iska caabin daal sare leh.

5.Machining & Threading

Xadhkaha goostay halkii API 7-2 tilmaamood.
Dahaarka naxaasta ah ama dahaarka fosfatada ayaa la marsaday si loo yareeyo xameetida.

6. Ilaalinta dusha sare

Hardbanding ayaa lagu dabaqay qalabka wadajirka ah ee OD si looga hortago xirashada.
Dahaarka ka-hortagga miridhku waxay xaqiijiyaan adkaysiga gaadiidka/kaydinta.

Cabirka & Cabbirrada

Shayga	Tilmaamaha (halkii API 5DP)
Dhexroor ka baxsan (OD)	2 3/8″ – 6 5/8″
Dhererka dhererka	R1 (18–22 fuudh), R2 (27–30 fuudh), R3 (38–45 fuudh)
Dhumucda darbiga	Waxay ku kala duwan tahay OD & darajada, shaxda API
Noocyada xanaaqsan	IU, EU, IEU
Xargaha Wadajirka ah ee Qalabka	NC, HADDII, REG, FH, Premium

Guryaha Makaanikada (API 5DP Fasalada)

Darajo	Xoogga Wax-soo-saarka (daqiiqo)	Xoogga Jilitaanka (daqiiqo)	Codsiga caadiga ah
E75	75,000 psi	100,000 psi	Ceelal gacmeed ilaa dhexdhexaad ah
X95	95,000 psi	105,000 psi	Qoto dheer oo dhexdhexaad ah
G105	105,000 psi	125,000 psi	Ceelal dhaadheer, rar badan
S135	135,000 psi	150,{1}} psi	Ceelal dhaadheer, deegaan HPHT

Xaqiijinta Tayada & Imtixaanka

Tuubo kasta waxay ku xiran tahay 100% kormeer sida ku cad API 5DP:

NDT:Kormeerka Ultrasonic ee aagagga jirka iyo alxanka, EMI eegida dildilaaca.
Baaritaanka Hydrostatic:Tijaabada cadaadiska si loo xaqiijiyo daacadnimada jidhka.
Hubinta cabbirka:OD, dhumucdiisuna waxay tahay gidaarka, toosnaanta, tijaabinta leexashada.
Qiyaasta dunta:Isticmaalka cabbiraadaha sare ee API ee saxnaanta biinanka/sanduuqa.
Tijaabooyinka Makaanikada:Xasilloonida, dhalidda, dhererka, adkaanta, Saamaynta Charpy.
Raadinta:Nambarka kulaylka, darajada, iyo monogram API oo shaabadaysan.

Faa'iidooyinka Tubooyinka Qodista Tubooyinka Octal

Buuxa API 5DP u hoggaansanaantaoo leh API 7-1/7-2 aaladaha heerarka wadajirka ah.
alxanka xaaqid sareqalabka xoogga wadajirka ah iyo caabbinta daalka.
Xakamaynta daaweynta kulaylka adagwaxay hubisaa waxqabadka joogtada ah ee fasalada oo dhan.
hardbanding optionalwaxay kordhisaa xidhashada nolosha ee qaababka xoqan.
Silsiladda sahayda caalamiga ahiyadoo si degdeg ah loo gaarsiinayo dhererka R2 & R3.
Xiriirinta gaarka ahdiyaar u ah xeebaha iyo mashaariicda HPHT.
